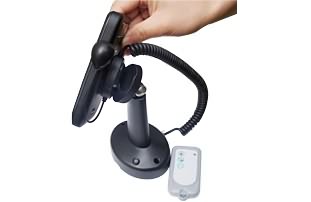

1. Product instruction: N04 is a single anti-theft stand for cell phone display
2. Brand: DRAGON GUARD
3. Model: N04
4. Color: Black
5. Product appearance: Single stand design
6. Product option Accessory: wireless Remote control

Product instruction

【Function introduction】
1. Offline alarm: that is to alarm when cut off any wire linked to the exhibit
2. Sensor alarm: that is to alarm when the sensor at the back of the exhibit is off by force
3. Pass door alarm: If forcibly removed the host, when go through the burglar antenna, the host alarm, and the burglar antenna alarm.
4. Status instructions: Green LED light is work properly. Red LED light is alarm
5. Status test: Remote control can test the alarm status, more stable
6. Power-efficient designs: Standby time for 1 year
【Performance parameters】
1. Dormancy status current 1.5uA
2. Standby status current 2uA.
3. Indicator status current 2uA
4. Alarm status current 20mA
5. Alarm volume 95db
6. Remote distance 5mm
7. Running voltage DC3V
【Product use】
1. Product installation: Remove the 3M adhesive tap, fix on the exhibition counter
2. Cell phone installation: Remove the 3M adhesive tap, paste cell phone
3. Alarm indicator: Use the remote control to send signal to the host, within 5cm, press “lock”, and the host indicator light turn green, namely the alarm indicator.
4. Alarm solution: When alarm, use remote control to send signal to host, within 5mm, press “unlock”, namely solution
5. Alarm test: using remote control to send signal to host, within 5mm, press “lock”, and the host indicator light turn green, then press “test” to alarm test. Press “unlock” to finish alarm test.
【Product specification】
1. Holder: height 150mm, the sensor diameter 70mm, base diameter 100mm
2. Support bar: Oval, up diameter 27mm, down diameter 34mm
