Parameters:RF800
The biggest test from the door: 40 × 40 soft label 1.7m
Mini-Tag 2.2 m
The signs 2.6 m

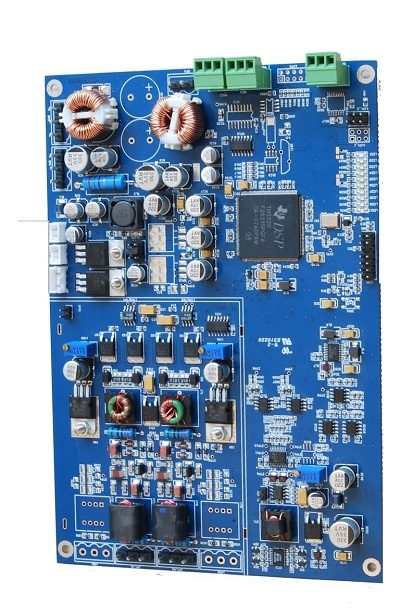

use of a high-performance digital signal processing (DSP) and digital signal resolved technology (RF / ADD);
automatically monitor and adjust the noise levels in order to facilitate the high noise environment to work effectively;
? digital multi-channel adaptive filter and adaptive frequency-hopping technology, the maximum stop
The possibility of false positives;
Self-all-digital self-test function, the environment is suitable and strong, high sensitivity and response time
Fast and wrong, omitted a very low rate,
low power consumption.
Using a similarly streamlined shape, nice, the choice of a variety of colors can adapt to all kinds of stores is decorated environment, particularly to meet the shopping malls on the protection needs of wide channel.
Design and manufacturing in full compliance with the Federal Communications Commission (FCC) awarded the radio frequency, signal strength, electromagnetic interference (EMI), radio frequency interference (RFI) and other requirements

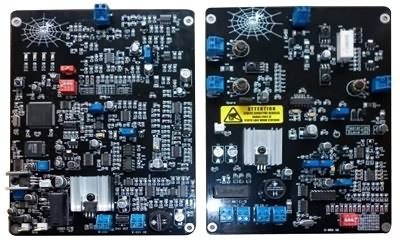

 Transmeter
receiver
Power connection Drawing
 loop diagram
|
|
 |
mono is 80cm one side(for 4*4 label)
120cm one side(for hard tag)
mono mannual
|
|

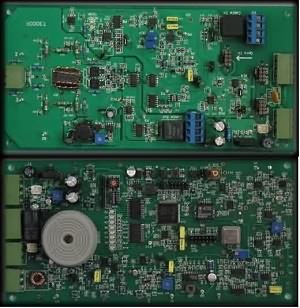

4800 are wireless communication system transmitting and receiving signals via radio frequencies. The standard operating centre of frequency is in the range 7~10MHz with bandwidth of 1MHz. It is to be used with RF labels and/or hard tags. A system is comprised of a receiver antenna, a transmitter antenna and a power supply.
Operating temperature: 0°C to 40°C Storage temperature: -40°C to 60°C
Humidity: 5% to 95%
B. Primary Technical Data:
Transmitter Receiver
Operating voltage…… DC 24V Operating voltage….…………. DC 24V
Operating current……. < 400mA Operating current, stand-by…… < 300mA Fuse…………… 250V, 500mA Operating current, operating….. < 400mA
Centre frequency……. 8.2 +/- 0.05MHz Fuse…………250V, 500mA
Modulation frequency..180Hz, 172Hz, 160Hz or 150Hz
(factory setting at 180Hz)
Soft label 1.20 M Hardware tab 1.50 M 4800 User’s Guide
|
 |
Parameters:
Soft label 1.00 M
Hardware tab 1.30 M
Technical status, characteristics
shrapnel-technology applications (owned intellectual property rights);
dynamic noise suppression technology;
adaptive multi-channel frequency-hopping technology;
fitness is strong, high sensitivity, fast response, more anti-interference capability
Strong, and false positives, omitted a lower rate;
installation, commissioning simple;
low power consumption.
detection channel with wider, higher detection rate, low rate of false positives and other features.
3800 User’s Guide
|
|
|
